Industrial Spring Support Systems

Here we furnish our overall manufacturing capacity and design parameters for custom Spring Support Systems:

• Load Balancing Thresholds: Engineered to hold operational weights ranging from 50 kg up to 50,000 kg per support point.
• Thermal Displacement Capability: Accommodates total vertical travel strokes up to 500 mm safely.
• Design Standards Compliance: Manufactured fully in accordance with MSS SP-58, ASME B31.1, and ASME B31.3 structural specifications.
• Corrosion Protection: Options include Hot-Dip Galvanizing (HDG), protective epoxy coating matrices, or full Stainless Steel housings.
• Calibration Accuracy: Pre-set and load-tested using calibrated digital sensors to ensure perfect out-of-the-box load balance.

Deep Dive: The 4 Primary Types of Spring Supports We Supply

Choosing the correct support architecture depends heavily on the total vertical travel distance and the maximum load variation your piping network can structurally tolerate. Below is the granular structural breakdown of our 4 specialized support configurations:

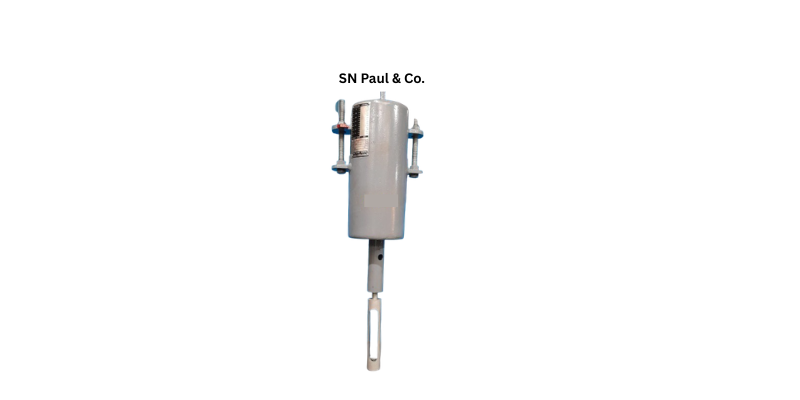

1. Variable Spring Supports (Variable Effort Hangers) Supplier

Variable Spring Supports utilize a heavy-duty helical coil spring compressed within a robust cylindrical steel canister. As the supported pipe undergoes thermal movement up or down, the spring coils compress or extend accordingly. Because a spring's force changes linearly with travel displacement, the supporting force exerted on the pipe changes throughout its movement path.

To preserve system safety and prevent the transferring of massive stress spikes back into delicate equipment connections, international piping codes state that the load variation should never exceed 25% between the installed (cold) and operating (hot) states. Variable supports represent a highly economical, space-efficient solution optimized for standard networks showing minimal vertical shifts, typically under 75 mm.

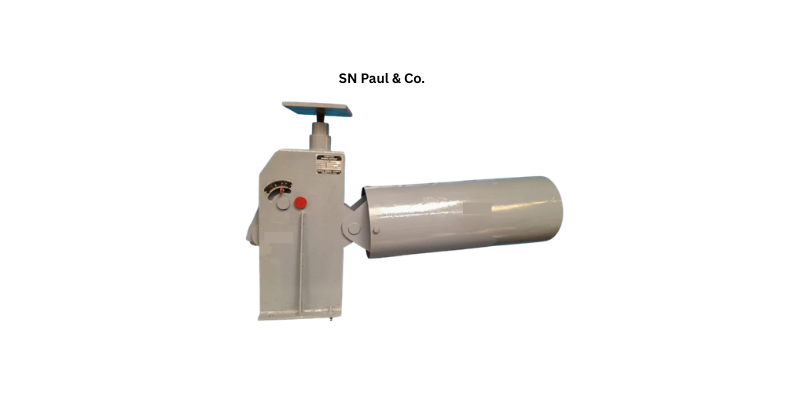

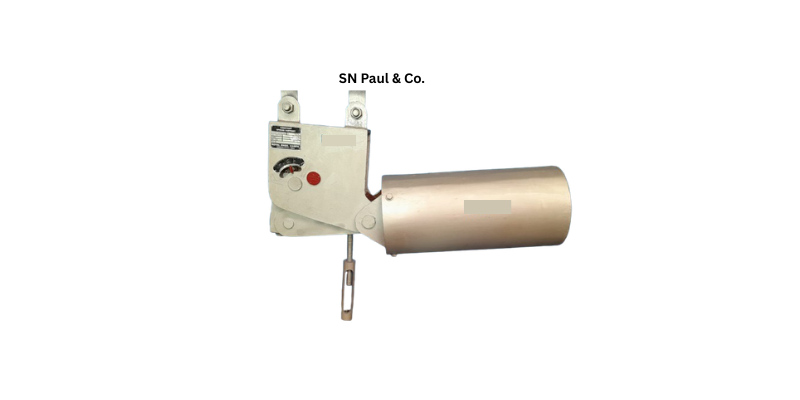

2. Constant Spring Supports (Constant Effort Hangers) Supplier

When high-pressure pipelines face massive thermal expansion profiles, a variable spring is insufficient because its load variation would breach safe thresholds. For these severe environments, Constant Spring Supports are required. These complex assemblies pair a heavy coiling spring with an engineered cam, internal lever arm, and a fixed geometric pivot point.

As the piping shifts vertically, the internal lever arm counter-shifts dynamically, continually altering the moment arm distance. This geometric adjustment perfectly offsets the changing resistance of the compressing spring, ensuring that the support exerts a perfectly uniform, constant force (with less than 6% total tolerance deviation) across its entire calibrated travel stroke. Constant hangers are critical for lines linked to ultra-sensitive rotating machinery like turbines, pumps, and compressors where zero external stress transfer is permitted.

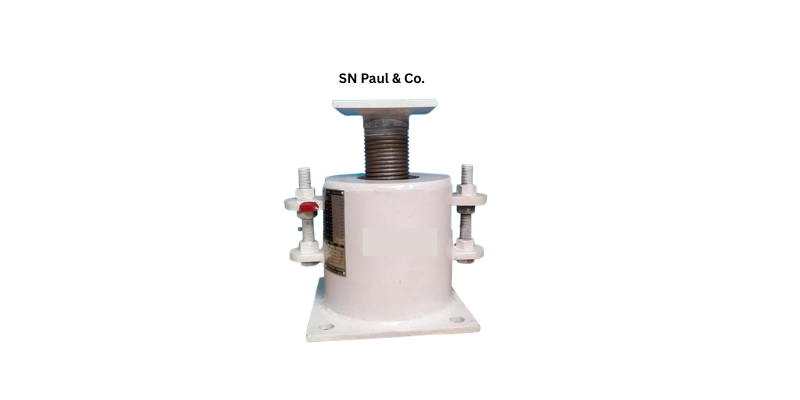

3. Base-Mounted Supports (Type F Floor Type) Supplier

While standard hangers hold pipelines by suspending them from overhead structural steel beams or ceilings, floor-level piping runs require a bottom-up approach. Base-Mounted Supports (conventionally classified as Type F supports) stand vertically on floor concrete pads, structural steel racks, or foundation piers.

The spring canister is bolted firmly directly to the floor structure, and the heavy pipeline rests cleanly on top of a specialized load flange or heavy-duty piston plate at the top of the spring assembly. To prevent the moving pipe from binding against the support during horizontal expansion, Type F units are frequently integrated with low-friction PTFE sliding plates, graphite pads, or independent guided rollers on the top surface to allow smooth, multi-directional displacement.

4. Specialized Dynamic Sway Braces Supplier

Unlike the previous three spring styles whose main objective is to counteract gravitational deadweight loads, a Specialized Dynamic Sway Brace acts as an instantaneous rigid restraint against unpredictable transient forces. This component contains a central neutral-travel spring arrangement preloaded symmetrically in both compression and tension within a single structural body.

The sway brace does not fight the slow, steady structural shifts caused by thermal expansion; instead, it provides hard, immediate opposition against high-velocity kinetic impacts. It acts as a heavy-duty mechanical dampener to suppress severe acoustic vibrations, wind buffeting, fluid water hammer shocks, or abrupt valve-trip surges that could otherwise tear a pipeline off its structural mountings.

Critical Cross-Sector Applications Manufactured For

Our custom engineered support units are deployed to manage massive structural loads in high-stress industrial environments:

• Thermal & Nuclear Power Plants: Supporting the main high-pressure steam lines running from the boiler to the turbine generator blocks.
• Petrochemical & Refining Complex Facilities: Managing massive expansion loads inside high-temperature distillation column piping tracks.
• LNG Processing Facilities: Compensating for extreme cryogenic contraction cycles found in liquid natural gas transfer lines.
• Heavy Maritime Engine Compartments: Dampening the severe vibrational stresses and thermal shifts present around marine exhaust setups.

System Support Price Architecture

Spring support systems are custom-engineered based on precise structural calculations, specific load requirements, and material treatments, categorized into the following cost tiers:

• Variable & Base-Mounted Type F Packages: Engineered for standard thermal travel limits and commercial piping infrastructure. Estimated prices span from ₹ 8,500 to ₹ 35,000 per assembly based on tonnage ratings.
• Precision Constant Effort & Sway Hanger Units: Custom engineered assemblies complete with lever-cam mechanisms for critical turbine lines and high-displacement networks. Prices span from ₹ 45,000 to ₹ 1,80,000+ per assembly.
