VOLUTE SPRING

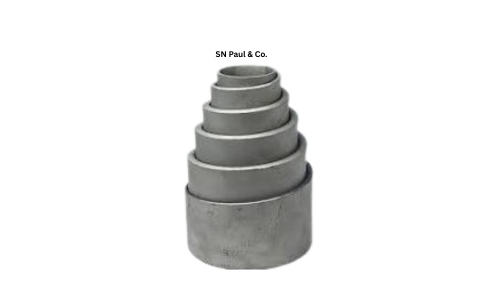

Flat Strip Volute Spring Profile

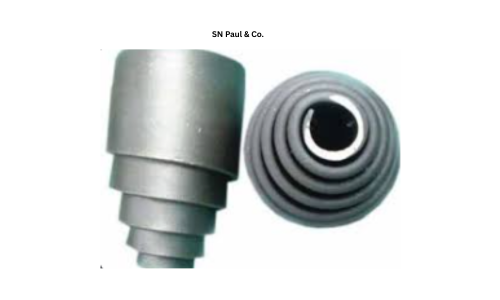

Precision Tapered Volute Springs

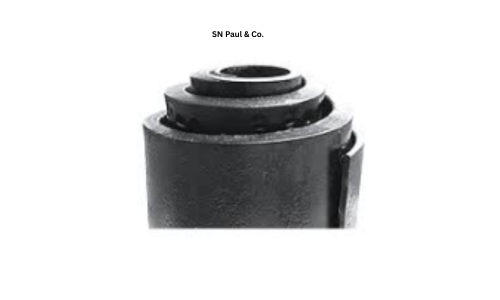

Conical Spiral Buffer Units

Our specialized Volute Springs are engineered in distinct geometry types to accommodate variable load profiles within highly tight spaces. By customizing the profile of the raw steel blade, we supply options fine-tuned either for extreme mechanical damping or uniform, compact deflection.

S.N. Paul & Co.

S.N. Paul & Co. is a premier industrial manufacturing firm specializing in engineering high-resilience components for heavy machinery and infrastructure. With decades of industrial manufacturing expertise, we deliver precision-crafted mechanical solutions that meet international standards for durability and performance.

Volute Spring Manufacturer

Depending on your application's space constraints and shock mitigation requirements, our engineering facility tailors two distinct classes of volute architecture. Both profiles leverage overlapping nesting physics to maximize vertical clearance.

1. Flat-Strip Volute Springs Supplier

Flat-Strip Volute Springs are produced by directly winding a uniform, rectangular cross-section flat steel blade onto a variable cone mandrel. Because the thickness of the blade remains constant from the upper peak to the bottom wide base, the faces of the overlapping metal ribbons exert wide, steady friction against each other during deflection.

This design is highly optimized for maximum energy dissipation. It is heavily selected as shock absorption bumpers for rail terminal stops, industrial stamping matrices, and heavy maritime towing hooks where controlling brutal kinetic rebound surges is the top engineering priority.

2. Tapered-Strip Volute Springs Supplier

Tapered-Strip Volute Springs are wound using an advanced raw blade that has been precision hot-tapered or profiled at its terminal edges before coiling begins. By thinning the metal profile toward the top inner coil, the spring achieves an ultra-smooth, progressive deflection curve under lightweight inputs before reaching maximum resistance.

The primary advantage of the tapered variant is its incredibly compact "solid height." When pushed to its limit, the thinned inner profile slots flawlessly inside the baseline coils without binding, yielding a profile that collapses down to nearly a flat plate profile—perfect for extreme low-clearance space applications.

Suppling On Engineering Capacity & Dimensional Constraints

We provide tailored modifications to both types of volute configurations based on your precise blueprint specifications:

Key Performance Differences Within Volute Classifications That We Supply

While both types utilize telescoping coils, choosing between them depends on your specific performance requirements:

Friction Coefficient: Flat-strip configurations provide much higher internal friction due to the larger, continuous contact area of the rectangular blade face. Tapered-strip configurations experience reduced friction near the thinned edges, providing a more fluid stroke with less mechanical noise.

Load Curve Progression: Tapered profiles offer a highly dynamic, parabolic non-linear rate, making them ideal for delicate machinery components that occasionally experience heavy overloads. Flat-strip profiles accumulate load faster and more aggressively from the start of the travel stroke.

Volute Configuration Pricing

Volute units are uniquely built to order based on batch sizing, tooling profiles, and testing certifications. Costs typically vary across the two styles:
